Introduction to Pythagorean Theorem

jyotirmaya naik

February 4, 2026 • Mathematics • 78 views

Learn the Pythagorean Theorem with simple explanations, formulas, solved examples, right triangle concepts, and real-life applications for students and beginners.

Introduction to Pythagorean Theorem • 13 pages

Welcome! In this presentation, we will learn about the Pythagorean Theorem, one of the most important concepts in mathematics.

In this lesson, you will learn four main things. First, you will understand what the Pythagorean Theorem is. Second, you will learn what a right triangle is. Third, you will learn how to apply the Pythagorean Theorem. And fourth, you will discover how this theorem is used in real-life situations.

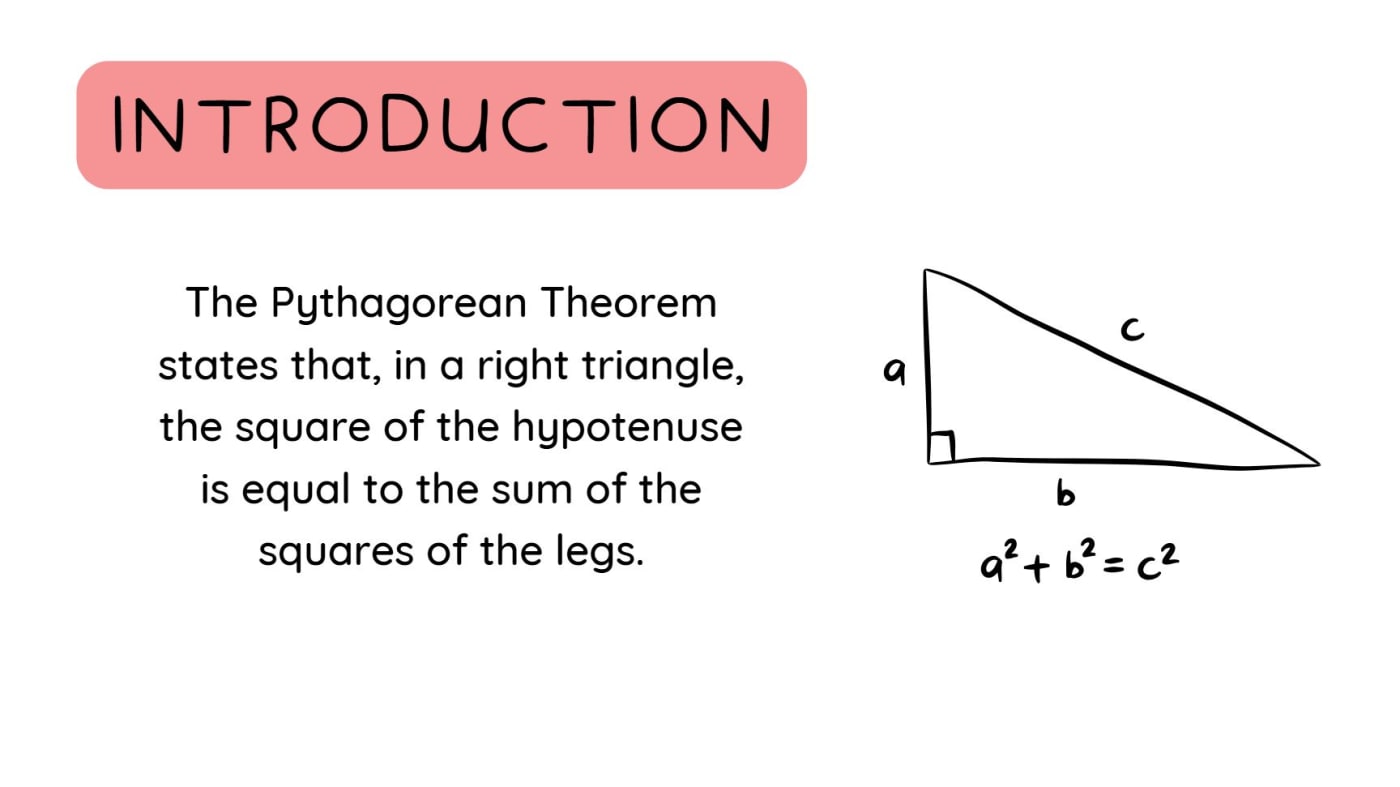

The Pythagorean Theorem states that in a right triangle, the square of the hypotenuse is equal to the sum of the squares of the other two sides, which are called the legs. This relationship helps us find missing side lengths in right triangles.

The Pythagorean Theorem is named after the ancient Greek mathematician and philosopher, Pythagoras. He is believed to have discovered this relationship during the 6th century BCE while leading a religious and mathematical school in Croton, Italy. However, evidence shows that this theorem was likely discovered earlier in other civilizations, including Egypt, Babylon, and China, as far back as the 20th century BCE.

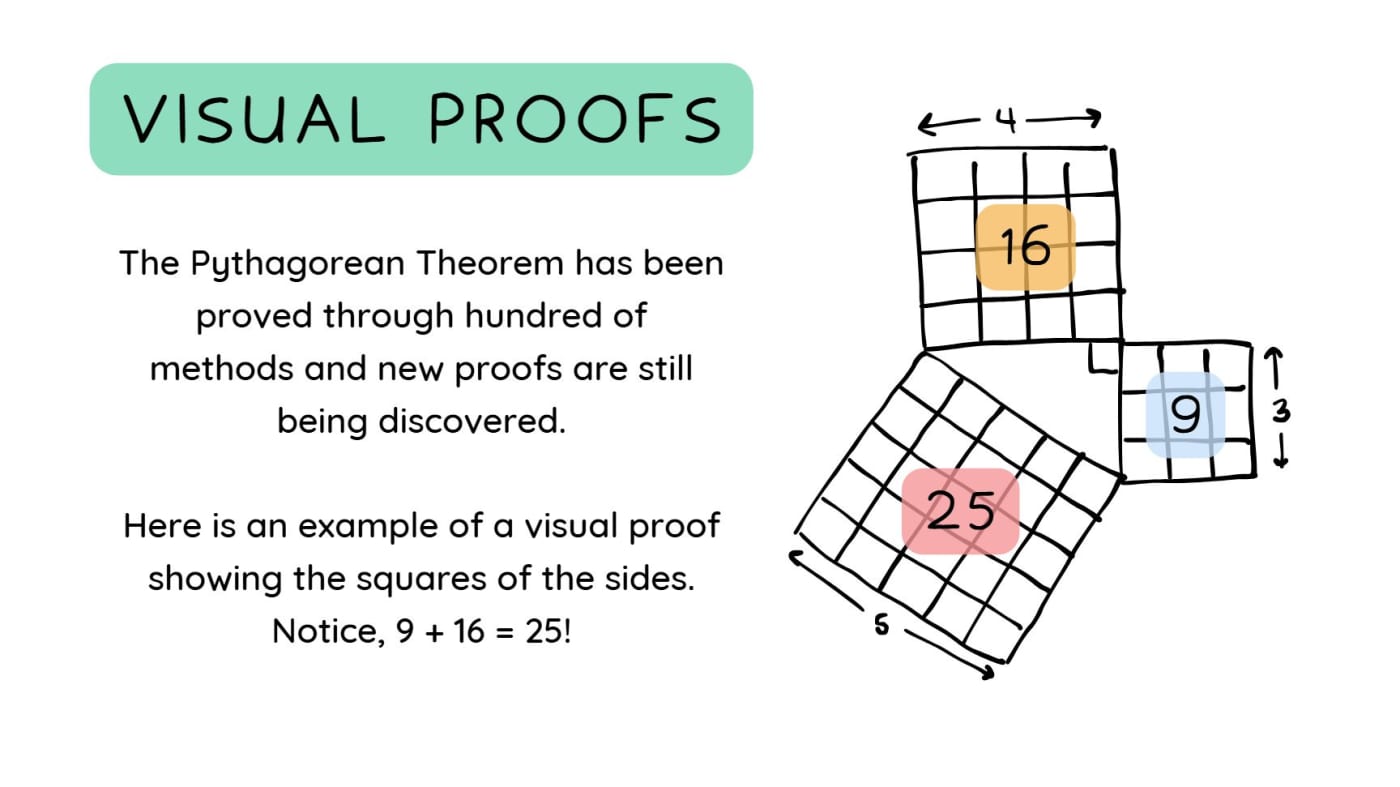

The Pythagorean Theorem has been proven in hundreds of different ways, and mathematicians continue to discover new proofs even today. One visual proof shows that if the squares built on the two shorter sides have areas of 9 and 16, their total is 25. This matches the square built on the longest side, which confirms the theorem.

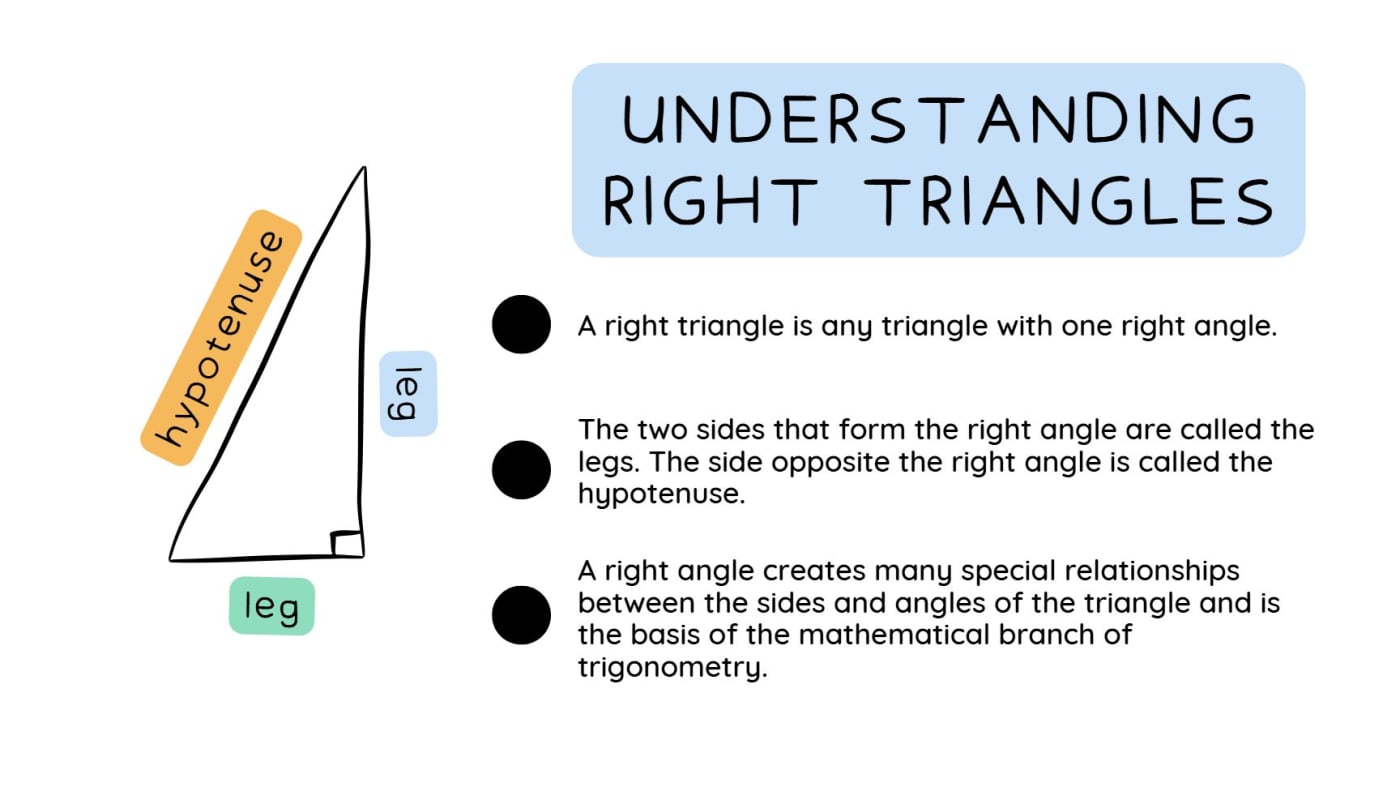

A right triangle is a triangle that contains one right angle, which measures 90 degrees. The two sides that form the right angle are called the legs. The side opposite the right angle is called the hypotenuse. Right triangles create special relationships between sides and angles and form the foundation of trigonometry.

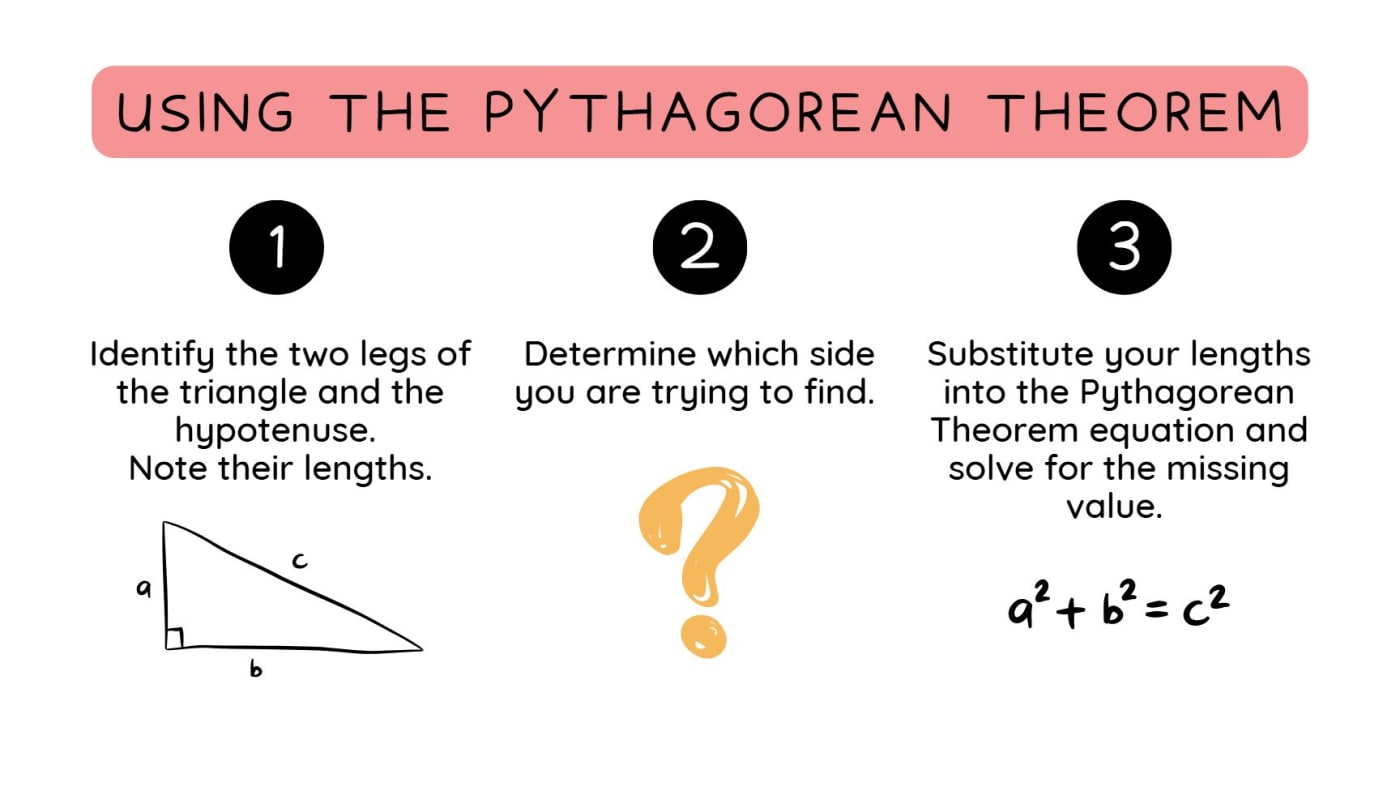

To use the Pythagorean Theorem, first determine which side length you need to find. Next, identify the two legs and the hypotenuse of the triangle. Then, note the lengths of the known sides. Finally, substitute those values into the Pythagorean Theorem equation and solve for the missing side.

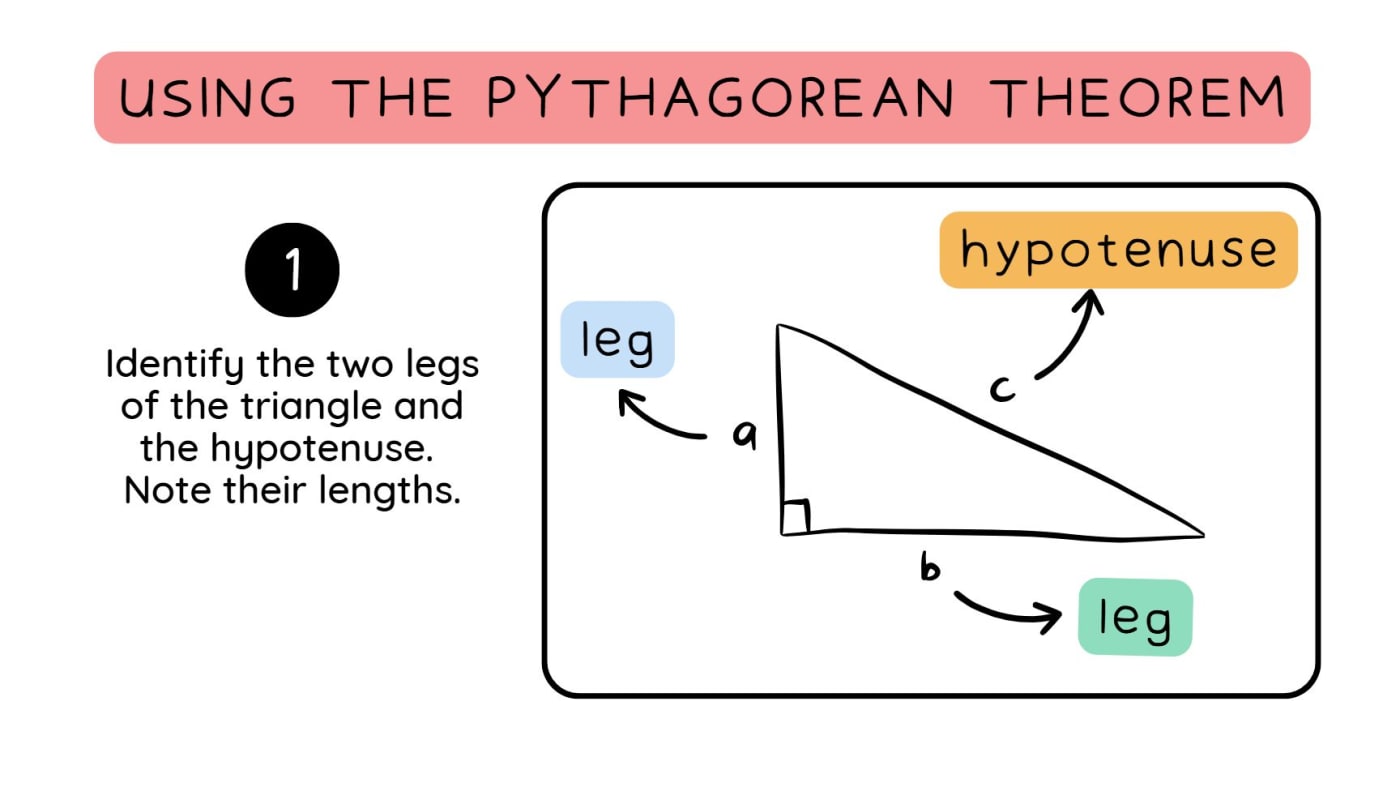

In this example, first identify the two legs of the triangle and the hypotenuse. Then, write down the known lengths of the sides.

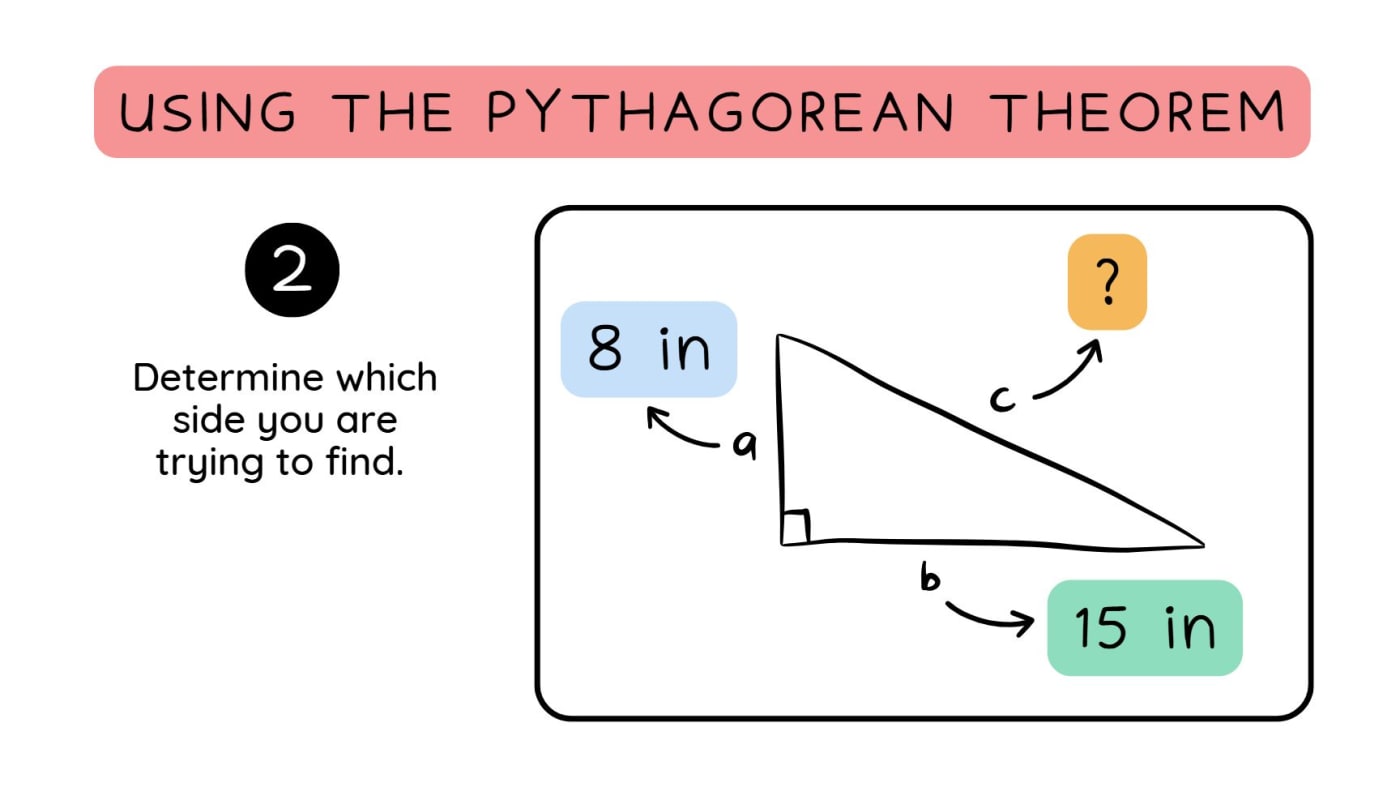

Next, determine which side length you are trying to find. In this case, we are solving for the hypotenuse.

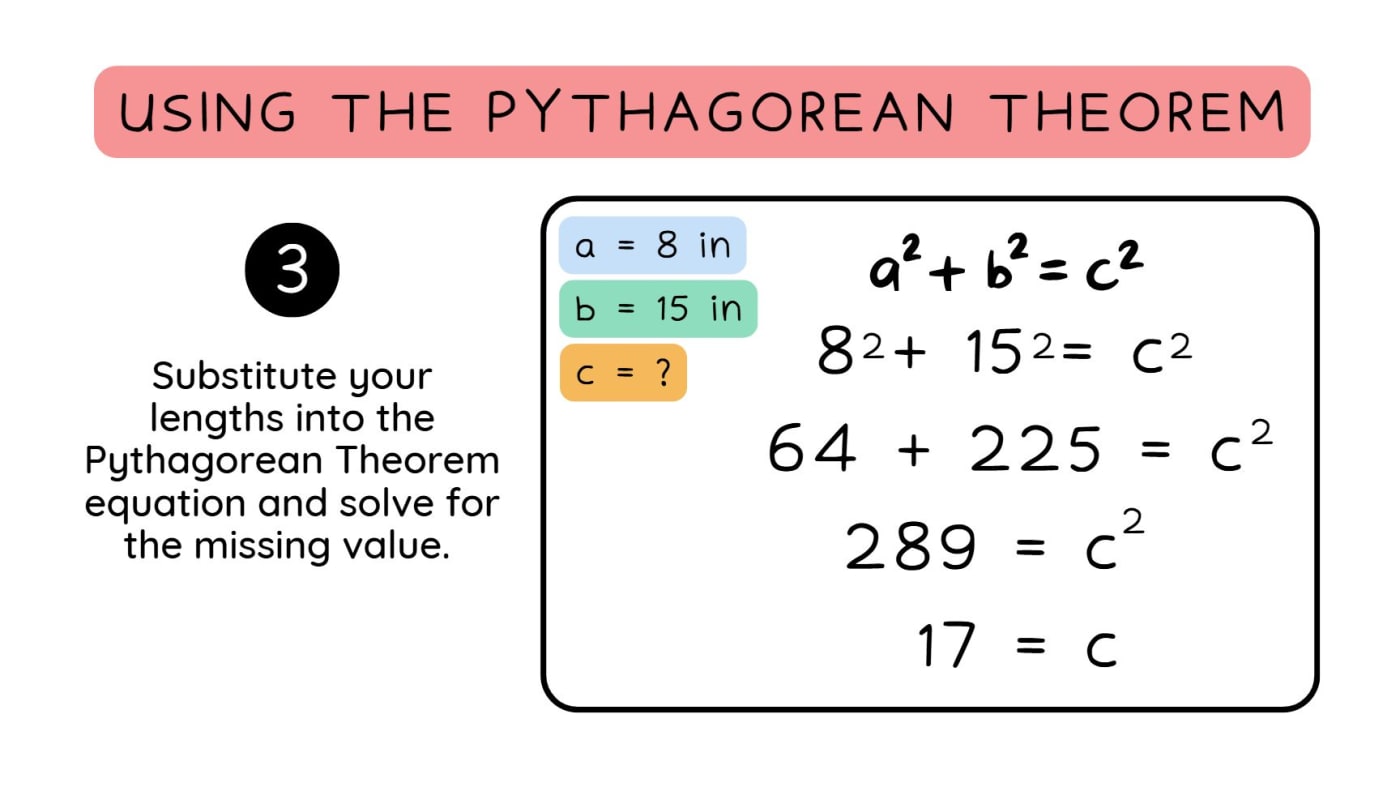

Now substitute the known values into the Pythagorean Theorem formula. If one leg is 8 inches and the other leg is 15 inches, the equation becomes: 8 squared plus 15 squared equals c squared. This gives us 64 plus 225 equals 289. Taking the square root of 289 gives us 17. So, the hypotenuse is 17 inches.

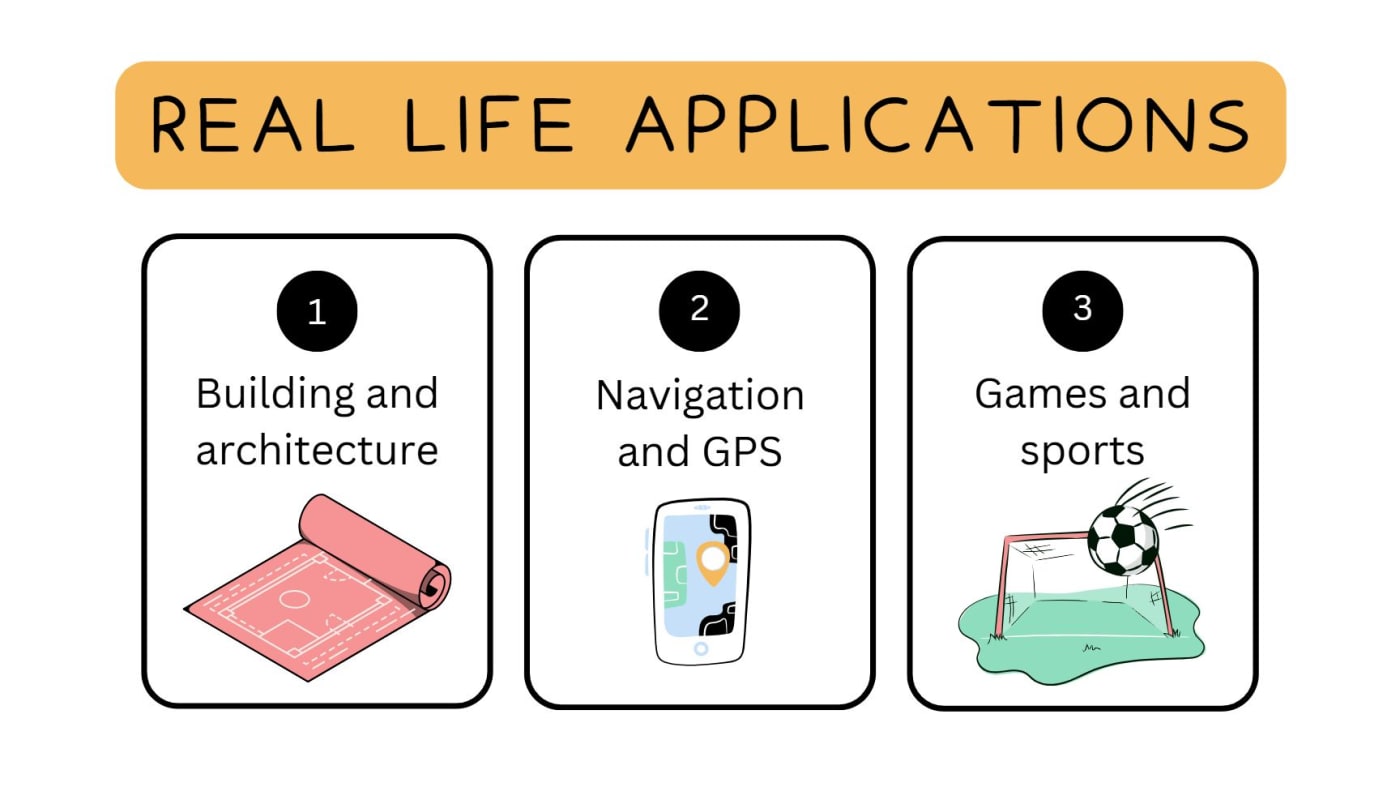

The Pythagorean Theorem is used in many real-life situations. It is useful in building and architecture to measure distances and angles. It is used in navigation and GPS systems to calculate locations and distances. It is also used in games and sports to measure movement and positioning.

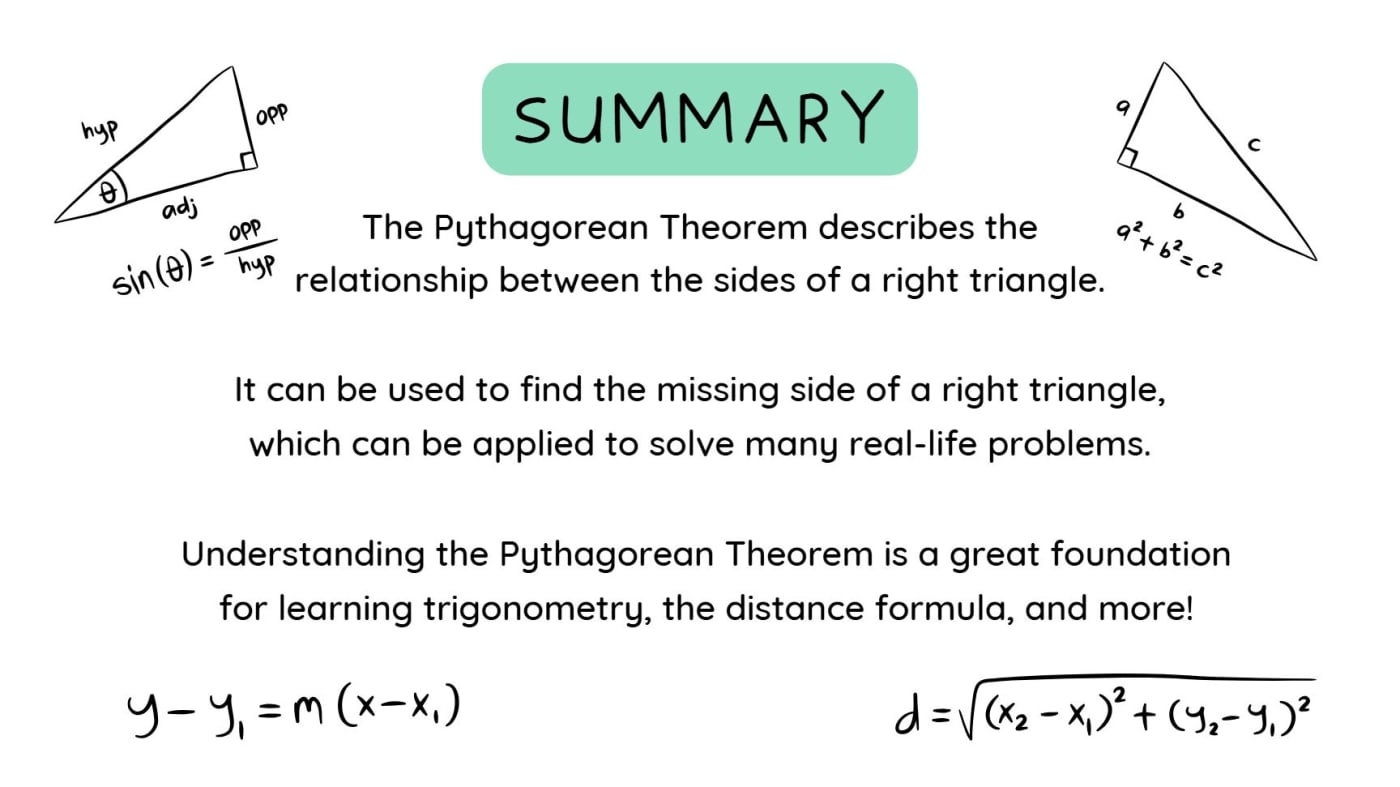

The Pythagorean Theorem explains the relationship between the sides of a right triangle. It helps us find missing side lengths and solve real-life problems. Understanding this theorem builds a strong foundation for learning advanced topics like trigonometry and the distance formula.

Thank you for learning! If you found this presentation helpful, please share it with your friends and other learners.
